Forward Overhead (FWD OH)
Forward Overhead

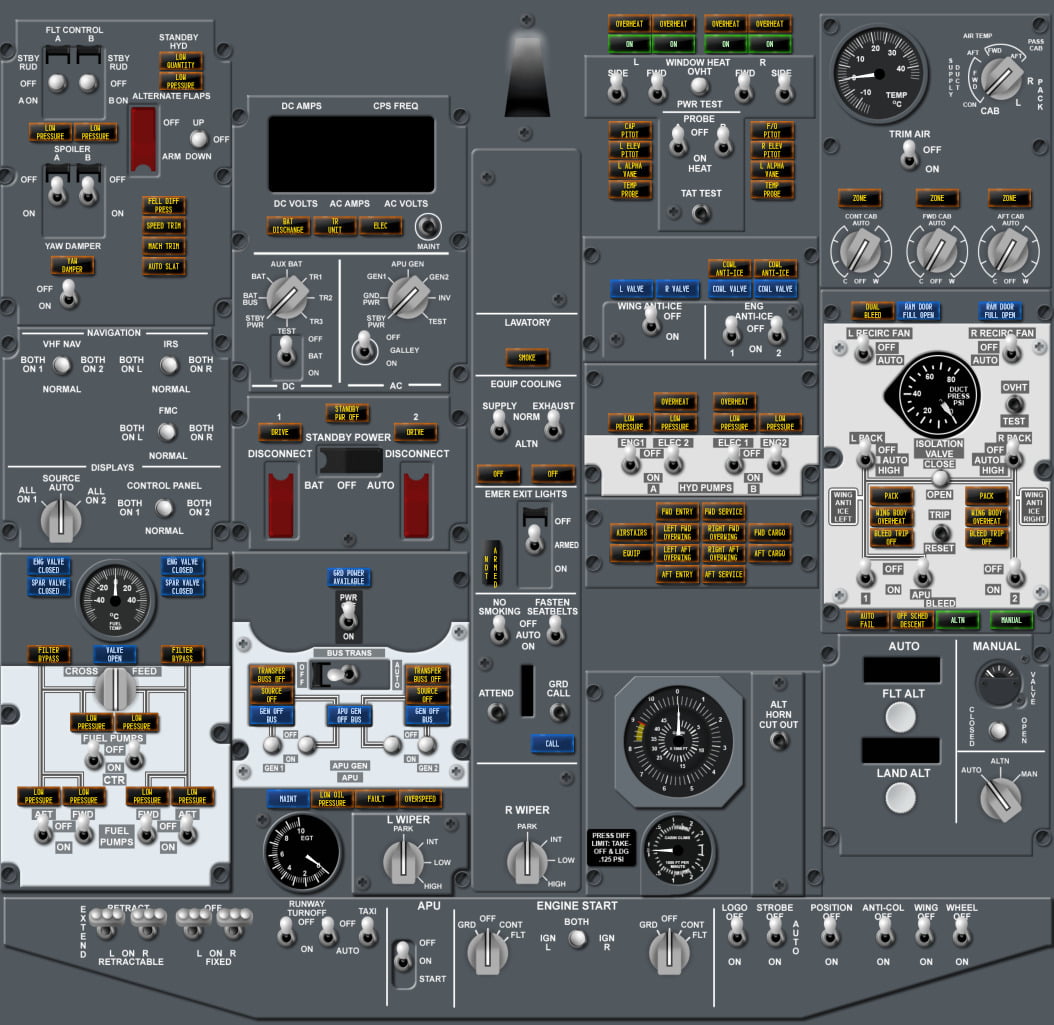

Click on an item in the panel diagram at right to list some basic ProSim Config properties for that item here.
Clicking the More Info link that appears will take you to the Combined Config reference where you’ll find more detailed ProSim configuration information on that item.
APU GENERATOR SWITCH 1
System: Electric
Group: Switch
ProSim Config Names:
APU GEN 1 Center
APU GEN 1 Off*
APU GEN 1 On*
*=Momentary
Hardware:
Honeywell 1TL1-7E
3-POS (ON) OFF (ON)
Center-Locking
Spring-loaded to Center position
APU GENERATOR SWITCH 2
System: Electric
Group: Switch
ProSim Config Names:
APU GEN 2 Center
APU GEN 2 Off*
APU GEN 2 On*
*=Momentary
Hardware:
Honeywell 1TL1-7E
3-POS (ON) OFF (ON)
Center-Locking
Spring-loaded to Center position
APU START SWITCH
System: Electric
Group: Switch
ProSim Config Names:
APU Switch Off
APU Switch On
APU Switch Start*
*=Momentary
Hardware:
Honeywell 1TL1-5K
3-POS ON-OFF-(ON)
Spring-loaded from Start to On
BATTERY SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Battery switch Off
Battery switch On
Hardware:
Honeywell 1TL1-2
Guarded 2-POS ON-OFF
In On position when guarded
BUS TRANSFER SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Bus transfer switch Off
Bus transfer switch Auto
Hardware:
Honeywell 1TL1-1
Guarded 2-POS ON-OFF
In Auto position when guarded
GENERATOR DRIVE DISCONNECT 1 SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Disconnect 1 Normal
Disconnect 1 Off
Hardware:
Honeywell 1TL1-2
Guarded 2-POS ON-OFF
In Normal position when guarded
GENERATOR DRIVE DISCONNECT 2 SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Disconnect 2 Normal
Disconnect 2 Off
Hardware:
Honeywell 1TL1-2
Guarded 2-POS ON-OFF
In Normal position when guarded
AC METER SELECTOR
System: Electric
Group: Switch
ProSim Config Names:
Elec Pnl AC STBY PWR
Elec Pnl AC GRD PWR
Elec Pnl AC GEN1
Elec Pnl AC APU GEN
Elec Pnl AC GEN2
Elec Pnl AC INV
Elec Pnl AC TEST
Hardware:
8 Position Rotary Switch
DC METER SELECTOR
System: Electric
System: Switch
ProSim Config Names:
Elec Pnl DC STBY PWR
Elec Pnl DC BAT BUS
Elec Pnl DC BAT
Elec Pnl DC AUX BAT
Elec Pnl DC TR1
Elec Pnl DC TR2
Elec Pnl DC TR3
Elec Pnl DC TEST
Hardware:
8 Position Rotary Switch
ELEC MAINT SWITCH
GENERATOR SWITCH 1
System: Electric
Group: Switch
ProSim Config Names:
GEN 1 Center
GEN 1 Off*
GEN 1 On*
*=Momentary
Hardware:
Honeywell 1TL1-7E
3-POS (ON) OFF (ON)
Center-Locking
Spring-loaded to Center position
GENERATOR SWITCH 2
System: Electric
Group: Switch
ProSim Config Names:
GEN 2 Center*
GEN 2 Off
GEN 2 On*
*=Momentary
Hardware:
Honeywell 1TL1-7E
3-POS (ON) OFF (ON)
Center-Locking
Spring-loaded to Center position
GALLEY SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Galley Off
Galley On
Hardware:
Honeywell 1TL12
2-POS ON-OFF
GROUND POWER SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Ground Power Off*
Ground Power Center
Ground Power On*
*=Momentary
Hardware:
Honeywell 1TL1-7E
3-POS (ON) OFF (ON)
Center-Locking
Spring-loaded to Center
IGNITION SELECT SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Ignition select Both
Ignition select Left
Ignition select Right
Hardware:
Honeywell 1TL1-1
3-POS ON-OFF-ON
STANDBY POWER SWITCH
System: Electric
Group: Switch
ProSim Config Names:
Standby power switch Auto
Standby power switch Off
Standby power switch Bat
Hardware:
Honeywell 1TL1-1
3-POS ON-OFF-ON
In Auto position when Guarded
APU GEN OFF BUS INDICATOR
APU LOW OIL PRESSURE INDICATOR
APU OVERSPEED INDICATOR
BAT DISCHARGE INDICATOR
GEN OFF BUS 1 INDICATOR
GEN OFF BUS 2 INDICATOR
GROUND POWER AVAILABLE INDICATOR
SOURCE OFF 1 INDICATOR
SOURCE OFF 2 INDICATOR
STANDBY POWER OFF INDICATOR
TRANSFER BUS OFF 1 INDICATOR
TRANSFER BUS OFF 2 INDICATOR
