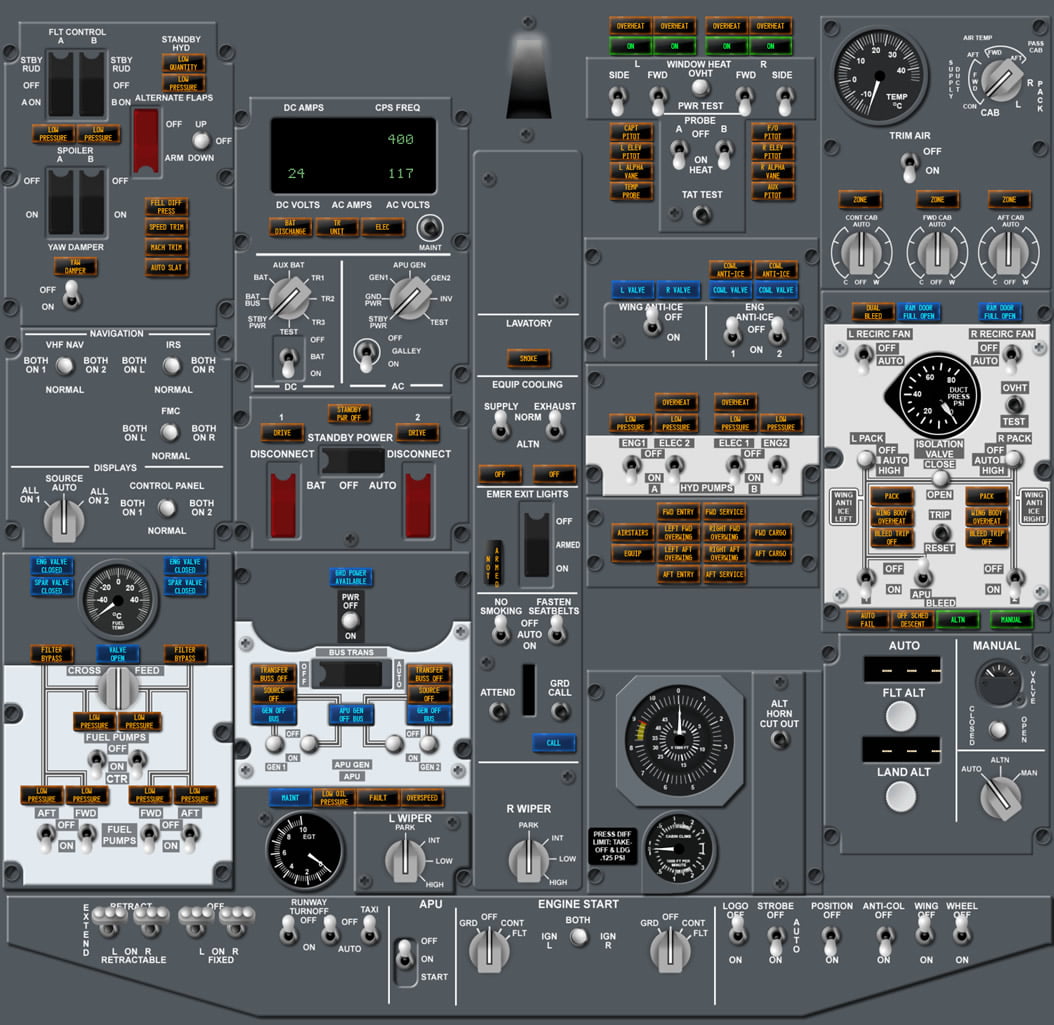

FWD-OH

Click an item in the diagram at right to view its basic ProSim Config properties.

Click the More Info button that appears in this panel to visit the Combined Config reference table where you'll find more detailed information on the item, if available.

FWD-OH
APU GEN 1 SWITCH AFT CAB SELECTOR ALPHA VANE HEAT L INDICATOR ALPHA VANE HEAT R INDICATOR ALT HORN CUTOUT SWITCH ALTERNATE FLAPS CTRL SWITCH ALTERNATE FLAPS SWITCH APU FAULT INDICATOR APU GAUGE APU GEN 2 SWITCH APU GEN OFF BUS INDICATOR APU LOW OIL PRESSURE INDICATOR APU MAINT INDICATOR APU OVERSPEED INDICATOR APU SWITCH ATTEND SWITCH AUTO SLAT FAIL INDICATOR AUX PITOT HEAT INDICATOR BAT DISCHARGE INDICATOR BATTERY SWITCH BLEED 1 SWITCH BLEED 2 SWITCH BLEED APU SWITCH BLEED TRIP OFF 1 INDICATOR BLEED TRIP OFF 2 INDICATOR BUS TRANSFER SWITCH CABIN TEMP SELECTOR SWITCH CABIN TEMPERATURE GAUGE CABIN VSI GAUGE CALL INDICATOR CAPT PITOT HEAT INDICATOR CONT CAB SELECTOR COPILOT PITOT HEAT INDICATOR COWL ANTI-ICE L INDICATOR COWL ANTI-ICE R INDICATOR COWL VALVE OPEN L INDICATOR COWL VALVE OPEN R INDICATOR CROSSFEED INDICATOR CROSSFEED SWITCH DISCONNECT 1 SWITCH DISCONNECT 2 SWITCH DISPLAY CONTROL PANEL SWITCH DISPLAY SOURCE SWITCH DOOR AFT CARGO INDICATOR DOOR AFT ENTRY INDICATOR DOOR AFT SERVICE INDICATOR DOOR AIR STAIRS INDICATOR DOOR EQUIP INDICATOR DOOR FWD CARGO INDICATOR DOOR FWD ENTRY INDICATOR DOOR FWD SERVICE INDICATOR DOOR LEFT AFT OVERWING INDICATOR DOOR LEFT FWD OVERWING INDICATOR DOOR RIGHT AFT OVERWING INDICATOR DOOR RIGHT FWD OVERWING INDICATOR DRIVE 1 INDICATOR DRIVE 2 INDICATOR DUAL BLEED INDICATOR ELEC INDICATOR ELEC MAINT SWITCH ELEC PNL AC SWITCH ELEC PNL DC SWITCH ELECTRIC PANEL LCD ELEV PITOT HEAT L INDICATOR ELEV PITOT HEAT R INDICATOR EMER EXIT LIGHTS SWITCH EMERG EXIT LIGHTS NOT ARMED INDICATOR ENG ANTI-ICE 1 SWITCH ENG ANTI-ICE 2 SWITCH ENG VALVE CLOSED L INDICATOR ENG VALVE CLOSED R INDICATOR EQUIP COOLING EXAUST OFF INDICATOR EQUIP COOLING EXAUST SWITCH EQUIP COOLING SUPPLY OFF INDICATOR EQUIP COOLING SUPPLY SWITCH FEEL DIFF PRESS INDICATOR FILTER BYPASS L INDICATOR FILTER BYPASS R INDICATOR FLT ALT DISPLAY FLT CTRL A SWITCH FLT CTRL B SWITCH FLT CONTROL LOW PRESSURE A INDICATOR FLT CONTROL LOW PRESSURE B INDICATOR FLIGHT ALT ENCODER FMC SWITCH FUEL CENTER LEFT LP INDICATOR FUEL CENTER LEFT SWITCH FUEL CENTER RIGHT LP INDICATOR FUEL CENTER RIGHT SWITCH FUEL LEFT AFT LP INDICATOR FUEL LEFT AFT SWITCH FUEL LEFT FWD LP INDICATOR FUEL LEFT FWD SWITCH FUEL RIGHT FWD SWITCH FUEL RIGHT AFT LP INDICATOR FUEL RIGHT AFT SWITCH FUEL RIGHT FWD LP INDICATOR FUEL TEMPERATURE GAUGE FWD CAB SELECTOR GALLEY SWITCH GEN OFF BUS 1 INDICATOR GEN OFF BUS 2 INDICATOR GEN 1 SWITCH GEN 2 SWITCH GROUND CALL SWITCH GROUND POWER AVAILABLE INDICATOR GROUND POWER SWITCH HYD ELEC1 LP INDICATOR HYD ELEC2 LP INDICATOR HYD ELEC1 OVHT INDICATOR HYD ELEC2 OVHT INDICATOR HYD ELEC1 SWITCH HYD ELEC2 SWITCH HYD ENG1 LP INDICATOR HYD ENG2 LP INDICATOR HYD ENG1 SWITCH HYD ENG2 SWITCH HYD STANDBY LOW PRESSURE INDICATOR HYD STANDBY LOW QUANTITY INDICATOR IGNITION SELECT SWITCH IRS SWITCH LAND ALT DISPLAY LAND ALT ENCODER LAVATORY SMOKE INDICATOR LIGHT MAIN RETRACT SWITCHES LIGHT MAIN FIXED SWITCHES LIGHTS ANTI COLLISION SWITCH LIGHTS LOGO SWITCH LIGHTS POSITION SWITCH LIGHTS RUNWAY TURNOFF SWITCHES LIGHTS STROBE SWITCH LIGHTS TAXI SWITCH LIGHTS WHEEL WELL SWITCH LIGHTS WING SWITCH MACH TRIM FAIL INDICATOR NO SMOKING SWITCH OFF SCHED DESCENT INDICATOR OUTFLOW VALVE POSITION GAUGE OUTFLOW VALVE SWITCH OVHT TEST PACK 1 SWITCH PACK 2 SWITCH PACK L INDICATOR PACK R INDICATOR PNEUMATIC ISOLATION SWITCH PRESSURE DIFFERENTIAL GAUGE PRESSURE GAUGE PRESSURIZATION ALTN INDICATOR PRESSURIZATION AUTO FAIL INDICATOR PRESSURIZATION MANUAL INDICATOR PRESSURIZATION SWITCH PROBE HEAT A SWITCH PROBE HEAT B SWITCH RAM DOOR FULL OPEN L INDICATOR RAM DOOR FULL OPEN R INDICATOR RECIRC FAN L SWITCH RECIRC FAN R SWITCH SEATBELT SWITCH SOURCE OFF 1 INDICATOR SOURCE OFF 2 INDICATOR SPAR VALVE CLOSED L INDICATOR SPAR VALVE CLOSED R INDICATOR SPEED TRIM FAIL INDICATOR SPOILER A SWITCH SPOILER B SWITCH STANDBY POWER OFF INDICATOR STANDBY POWER SWITCH START 1 SWITCH START 2 SWITCH STDBY RUD ON INDICATOR TAT TEST SWITCH TEMP PROBE HEAT INDICATOR TR UNIT INDICATOR TRANSFER BUS OFF 1 INDICATOR TRANSFER BUS OFF 2 INDICATOR TRIM AIR SWITCH TRIP RESET SWITCH VHF NAV SWITCH WAI L VALVE OPEN INDICATOR WAI R VALVE OPEN INDICATOR WINDOW HEAT FWD L OVERHEAT INDICATOR WINDOW HEAT SIDE L OVERHEAT INDICATOR WINDOW HEAT SIDE R OVERHEAT INDICATOR WINDOW HEAT FWD R OVERHEAT INDICATOR WINDOW HEAT SIDE L INDICATOR WINDOW HEAT FWD L INDICATOR WINDOW HEAT FWD R INDICATOR WINDOW HEAT SIDE R INDICATOR WINDOW HEAT SIDE L SWITCH WINDOW HEAT FWD L SWITCH WINDOW HEAT TEST SWITCH WINDOW HEAT FWD R SWITCH WINDOW HEAT SIDE R SWITCH WING ANTI-ICE SWITCH WING-BODY OVERHEAT 1 INDICATOR WING-BODY OVERHEAT 2 INDICATOR WIPER LEFT SWITCH WIPER RIGHT SWITCH YAW DAMPER INDICATOR YAW DAMPER SWITCH ZONE TEMP CONT CAB INDICATOR ZONE TEMP FWD CAB INDICATOR ZONE TEMP AFT CAB INDICATOR VOICE RECORDER SWITCH VOICE RECORDER ERASE SWITCH VOICE RECORDER TEST SWITCH VOICE RECORDER STATUS INDICATOR

APU GEN 1 SWITCH

APU_GEN_1_Center


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:

APU GEN 1 Off*
APU GEN 1 Center
APU GEN 1 On*

*=Momentary

Hardware:
Honeywell 1TL1-7E
3-POS (ON) OFF (ON)
Center-Locking
Spring-loaded to Center position

More Info

AFT CAB SELECTOR

aft_cab_selector_analog


ProSim System:
Pneumatic

ProSim Group: Analog

ProSim Config Names:
AFT CAB selector

Hardware:
10K Potentiometer

More Info

ALPHA VANE HEAT L INDICATOR

alpha_vane_heat_l_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Alpha Vane Heat L

More Info

ALPHA VANE HEAT R INDICATOR

alpha_vane_heat_r_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Alpha Vane Heat R*

*The ProSim virtual panel shows the indicator incorrectly as "L ALPHA VANE". It should be "R ALPHA VANE" as per the real aircraft.

More Info

ALT HORN CUTOUT SWITCH

alt_horn_cutout_off_switch


ProSim System:
Penumatic

ProSim Group: Switch

ProSim Config Names:
Alt horn cutout Off
Alt horn cutout Pushed

Hardware:
Momentary push button, (ON)-OFF

More Info

ALTERNATE FLAPS CTRL SWITCH

alternate_flaps_ctrl_off_switch

ProSim System:
Hydraulic

ProSim Group:
Switch

ProSim Config Names:
Alternate flaps ctrl Off
Alternate flaps ctrl Up
Alternate flaps ctrl Down

Hardware:
Honeywell 1TL1-5


Notes:
3-POS ON-OFF-(ON).

UP position - indexed
OFF position - indexed
DOWN position - Momentary ON

Normal position is OFF.

Make sure you orient the switch accordingly.

ALTERNATE FLAPS SWITCH

alternate_flaps_switch

ProSim System:
Hydraulic

ProSim Group:
Switch

ProSim Config Names:
Alternate flaps Off
Alternate flaps Arm

Hardware:
Honeywell 1TL1-2


Notes:
2-POS ON-OFF

Switch is in OFF position when guard is closed. You do not need to assign the OFF switch position in ProSim Config.

APU FAULT INDICATOR


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
APU FAULT

More Info

APU GAUGE

APU EGT Gauge


ProSim System:
Electric

ProSim Group: Gauge

ProSim Config Names:
APU

More Info

APU GEN 2 SWITCH


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:

APU GEN 2 Off*
APU GEN 2 Center
APU GEN 2 On*

*=Momentary

Hardware:
Honeywell 1TL1-7E
3-POS (ON) OFF (ON)
Center-Locking
Spring-loaded to Center position

More Info

APU GEN OFF BUS INDICATOR


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
APU GEN OFF BUS

More Info

APU LOW OIL PRESSURE INDICATOR


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
APU Low oil pressure

More Info

APU MAINT INDICATOR


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
APU Maint

More Info

APU OVERSPEED INDICATOR


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
APU Overspeed

More Info

APU SWITCH

APU_switch_On


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
APU Switch Off
APU Switch On
APU Switch Start*

*=Momentary

Hardware:
Honeywell 1TL1-5K
3-POS ON-OFF-(ON)
Spring-loaded from Start to On

More Info

ATTEND SWITCH

attend_off_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Attend Off
Attend Pushed

Hardware:
Momentary push-button, (ON)-OFF

More Info

AUTO SLAT FAIL INDICATOR

auto_slat_fail_indicator

ProSim System: Flight Controls

ProSim Group: Indicator

ProSim Config Names:
Auto slat Fail

Hardware:

Notes:

More Info

AUX PITOT HEAT INDICATOR

auxpitot_heat_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Aux Pitot Heat

More Info

BAT DISCHARGE INDICATOR

Bat_discharge_indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Bat discharge

More Info

BATTERY SWITCH

Battery_Switch_On


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Battery switch Off
Battery switch On

Hardware:
Honeywell 1TL1-2
Guarded 2-POS ON-OFF
In On position when guarded

More Info

BLEED 1 SWITCH

bleed_1_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Bleed 1 Off
Bleed 1 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

BLEED 2 SWITCH

bleed_2_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Bleed 2 Off
Bleed 2 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

BLEED APU SWITCH

bleed_apu_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Bleed APU Off
Bleed APU On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

BLEED TRIP OFF 1 INDICATOR

bleed_trip_off_1_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Bleed trip off 1

More Info

BLEED TRIP OFF 2 INDICATOR

bleed_trip_off_2_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Bleed trip off 2

More Info

BUS TRANSFER SWITCH

Bus_Transfer_Switch_Off


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Bus transfer switch Off
Bus transfer switch Auto

Hardware:
Honeywell 1TL1-1
Guarded 2-POS ON-OFF
In Auto position when guarded

More Info

CABIN TEMP SELECTOR SWITCH

air_temp_selector_cont_cab_switch


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Air Temp Selector CONT CAB
Air Temp Selector DUCT FWD
Air Temp Selector DUCT AFT
Air Temp Selector CAB FWD
Air Temp Selector CAB AFT
Air Temp Selector R
Air Temp Selector L

Hardware:
8-Position Rotary Switch

More Info

CABIN TEMPERATURE GAUGE

cabin_temperature_gauge


ProSim System:
Pneumatic

ProSim Group: Gauge

ProSim Config Names:
Cabin temperature

More Info

CABIN VSI GAUGE

cabin_vsi_gauge


ProSim System:
Pneumatic

ProSim Group: Gauge

ProSim Config Names:
Cabin VSI

More Info

CALL INDICATOR

call_indicator


ProSim System:
Communication

ProSim Group: Indicator

ProSim Config Names:
Call

More Info

CAPT PITOT HEAT INDICATOR

capt_pitot_heat_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Capt Pitot Heat

More Info

CONT CAB SELECTOR

cont_cab_selector_analog


ProSim System:
Pneumatic

ProSim Group: Analog

ProSim Config Names:
CONT CAB selector

Hardware:
10K Potentiometer

More Info

COPILOT PITOT HEAT INDICATOR

copilot_pitot_heat_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Copilot Pitot Heat*

*NOTE: This is the correct item name for the "F/O PITOT" indicator

More Info

COWL ANTI-ICE L INDICATOR

cowl_anti_ice_l_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Cowl Anti-Ice L

More Info

COWL ANTI-ICE R INDICATOR

cowl_anti_ice_r_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Cowl Anti-Ice R

More Info

COWL VALVE OPEN L INDICATOR

cowl_valve_open_l_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Cowl valve open L
Cowl valve open L bright (GATE)*

*This is a dual-brightness indicator. The bright state is activated by a gate. Bright indicates the valve is in transit and dim indicates a full open state.

More Info

COWL VALVE OPEN R INDICATOR

cowl_valve_open_r_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Cowl valve open R
Cowl valve open R bright (GATE)*

*This is a dual-brightness indicator. The bright state is activated by a gate. Bright indicates the valve is in transit and dim indicates a full open state.

More Info

CROSSFEED INDICATOR

crossfeed_indicator_bright_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Crossfeed indicator
Crossfeed indicator bright

This is a dual-brightness indicator

More Info

CROSSFEED SWITCH

crossfeed_closed_switch


ProSim System:
Fuel

ProSim Group: Switch

ProSim Config Names:
Crossfeed Off
Crossfeed On

Hardware:
Honeywell 7AS12
90 Degree 2-POS Rotary
Knob P/N BP073-109

More Info

DISCONNECT 1 SWITCH

Disconnect_1_Normal


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Disconnect 1 Normal
Disconnect 1 Off

Hardware:
Honeywell 1TL1-2
Guarded 2-POS ON-OFF
In Normal position when guarded

More Info

DISCONNECT 2 SWITCH

Disconnect_2_Normal


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Disconnect 2 Normal
Disconnect 2 Off

Hardware:
Honeywell 1TL1-2
Guarded 2-POS ON-OFF
In Normal position when guarded

More Info

DISPLAY CONTROL PANEL SWITCH

display_control_panel_normal_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Display Control Panel Both on 1
Display Control Panel Normal
Display Control Panel Both on 2

More Info

DISPLAY SOURCE SWITCH

display_source_auto_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Display source All on 1
Display source Auto
Display source All on 2

Hardware:
8 Position Rotary (restricted to 3 positions)

More Info

DOOR AFT CARGO INDICATOR

door_aft_cargo_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Aft Cargo

More Info

DOOR AFT ENTRY INDICATOR

door_aft_entry_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Aft Entry

More Info

DOOR AFT SERVICE INDICATOR

door_aft_service_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Aft Service

More Info

DOOR AIR STAIRS INDICATOR

door_air_stairs_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Air Stairs

More Info

DOOR EQUIP INDICATOR

door_equip_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Equip

More Info

DOOR FWD CARGO INDICATOR

door_fwd_cargo_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Fwd Cargo

More Info

DOOR FWD ENTRY INDICATOR

door_fwd_entry_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Fwd entry

More Info

DOOR FWD SERVICE INDICATOR

door_fwd_service_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Fwd Service

More Info

DOOR LEFT AFT OVERWING INDICATOR

door_left_aft_overwing_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Left Aft Overwing

More Info

DOOR LEFT FWD OVERWING INDICATOR

door_left_fwd_overwing_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Left Fwd Overwing

More Info

DOOR RIGHT AFT OVERWING INDICATOR

door_right_aft_overwing_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Right Aft Overwing

More Info

DOOR RIGHT FWD OVERWING INDICATOR

door_right_fwd_overwing_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Door Right Fwd Overwing

More Info

DRIVE 1 INDICATOR

Drive 1 Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Drive 1

More Info

DRIVE 2 INDICATOR

Drive 2 Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Drive 2

More Info

DUAL BLEED INDICATOR

dual_bleed_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Dual bleed

More Info

ELEC INDICATOR

ELEC Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:ELEC

More Info

ELEC MAINT SWITCH


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Elec maint Off
Elec maint Pushed

Hardware:
Momentary push button, (ON)-OFF

More Info

ELEC PNL AC SWITCH

Elec_Pnl_AC_APU_GEN


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Elec Pnl AC STBY PWR
Elec Pnl AC GRD PWR
Elec Pnl AC GEN1
Elec Pnl AC  APU GEN
Elec Pnl AC GEN2
Elec Pnl AC INV
Elec Pnl AC TEST

Hardware:
8 Position Rotary Switch
(restricted to 7 positions)

More Info

ELEC PNL DC SWITCH

Elec_Pnl_DC_AUX_BAT


ProSim System:
Electric

ProSim System: Switch

ProSim Config Names:
Elec Pnl DC STBY PWR
Elec Pnl DC BAT BUS
Elec Pnl DC BAT
Elec Pnl DC AUX BAT
Elec Pnl DC TR1
Elec Pnl DC TR2
Elec Pnl DC TR3
Elec Pnl DC TEST

Hardware:
8 Position Rotary Switch

More Info

ELECTRIC PANEL LCD

Electric Panel LCD


ProSim System:
Electric

ProSim Group: LCD

ProSim Config Names:
Electric Panel

More Info

ELEV PITOT HEAT L INDICATOR

elev_pitot_heat_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Elev pitot Heat L

More Info

ELEV PITOT HEAT R INDICATOR

elev_pitot_heat_r_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Elev pitot Heat R

More Info

EMER EXIT LIGHTS SWITCH

emer_exit_lights_armed_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:
Emer Exit Light Off
Emer Exit Lights Armed
Emer Exit Lights On

ON position is the active state when guard is closed.

Hardware:
Honeywell ITL1-1
3-POS ON-OFF-ON

More Info

EMERG EXIT LIGHTS NOT ARMED INDICATOR

emerg_exit_lights_not_armed_indicator


ProSim System:
Lighting

ProSim Group: Indicator

ProSim Config Names:
Emerg Exit Lights not armed

More Info

ENG ANTI-ICE 1 SWITCH

eng_anti_ice_1_off_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Eng Anti-Ice 1 Off
Eng Anti-Ice 1 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

ENG ANTI-ICE 2 SWITCH

eng_anti_ice_2_off_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Eng Anti-Ice 2 Off
Eng Anti-Ice 2 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

ENG VALVE CLOSED L INDICATOR

eng_valve_closed_l_indicator_bright


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
ENG Valve Closed L
ENG Valve Closed L bright

This is a dual-brightness indicator

More Info

ENG VALVE CLOSED R INDICATOR

eng_valve_closed_r_indicator_bright


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
ENG Valve Closed R
ENG Valve Closed R bright

This is a dual-brightness indicator

More Info

EQUIP COOLING EXAUST OFF INDICATOR

equip_cooling_exaust_off_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Equip cooling exhaust Off

More Info

EQUIP COOLING EXAUST SWITCH

equip_cooling_exaust_normal_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Equip cooling exhaust Normal
Equip cooling exhaust Alternate

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

EQUIP COOLING SUPPLY OFF INDICATOR

equip_cooling_supply_off_indicator


ProSim System:
Misc

ProSim Group: Indicator

ProSim Config Names:
Equip cooling supply Off

More Info

EQUIP COOLING SUPPLY SWITCH

equip_cooling_supply_normal_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Equip cooling supply Normal
Equip cooling supply Alternate

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

FEEL DIFF PRESS INDICATOR

feel_diff_press_indicator

ProSim System: Hydraulic

ProSim Group: Indicator

ProSim Config Names:
Feel Diff Press

Hardware:

Notes:

FILTER BYPASS L INDICATOR

filter_bypass_l_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Filter Bypass L

More Info

FILTER BYPASS R INDICATOR

filter_bypass_r_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Filter Bypass R

More Info

FLT ALT DISPLAY

fli_alt_display


ProSim System:
Pneumatic

ProSim Group: Unknown

ProSim Config Names:
To Be Determined

More Info

FLT CTRL A SWITCH

flt_ctrl_a_a_on_switch

ProSim System:
Hydraulic

ProSim Group:
Switch

ProSim Config Names:
Flt Ctrl A Off
Flt Ctrl A Stby Rud
Flt Ctrl A A On

Hardware:
Honeywell 1TL1-1


Notes:
3-POS ON-OFF-ON

You do not need to assign the OFF position to ProSim.

Associate one ON switch position to the STBY RUD and then assign to ProSim Config item "Flt Ctrl A Stby Rud".

Associate the other ON switch position to the A ON and then assign to ProSim Config item "Flt Ctrl A A On".

FLT CTRL B SWITCH

flt_ctrl_b_b_on_switch

ProSim System:
Hydraulic

ProSim Group:
Switch

ProSim Config Names:
Flt Ctrl B Off
Flt Ctrl B Stby Rud
Flt Ctrl B B On

Hardware:
Honeywell 1TL1-1


Notes:
3-POS ON-OFF-ON

You do not need to assign the OFF position to ProSim.

Associate one ON switch position to the STBY RUD and then assign to ProSim Config item “Flt Ctrl B Stby Rud”.

Associate the other ON switch position to the A ON and then assign to ProSim Config item “Flt Ctrl B B On”.

FLT CONTROL LOW PRESSURE A INDICATOR

flt_control_low_pressure_a_indicator

ProSim System:
Hydraulic

ProSim Group:
Indicator

ProSim Config Names:
FLT Control low pressure A

Hardware:
N/A

Notes:
None

FLT CONTROL LOW PRESSURE B INDICATOR

flt_control_low_pressure_b_indicator

ProSim System:
Hydraulic

ProSim Group:
Indicator

ProSim Config Names:
FLT Control low pressure B

Hardware:
N/A

Notes:
None

FLIGHT ALT ENCODER

fli_alt_encoder


ProSim System:
Pneumatic

ProSim Group: Encoder

ProSim Config Names:
Flight alt in encoder

NOTE: other related inputs include:
Flight alt in encoder pulse down Off (SWITCH)
Flight alt in encoder pulse down On (SWITCH)
Flight alt in encoder pulse up Off (SWITCH)
Flight alt in encoder pulse up On (SWITCH)
Flight alt in (ANALOG)

Hardware:
Continuous rotary encoder switch

More Info

FMC SWITCH

fmc_normal_switch


ProSim System:
Navigation

ProSim Group: Switch

ProSim Config Names:
FMC Normal
FMC Both on L
FMC Both on R

Hardware:
Honeywell 1TL1-1A
3-POS ON-OFF-ON
Locking in all three positions

More Info

FUEL CENTER LEFT LP INDICATOR

fuel_center_left_lp_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Fuel Center Left LP

More Info

FUEL CENTER LEFT SWITCH

fuel_center_left_on_switch


ProSim System:
Fuel

ProSim Group:
Switch

ProSim Config Names:
Fuel Center Left Off
Fuel Center Left On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

FUEL CENTER RIGHT LP INDICATOR

fuel_center_right_lp_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Fuel Center Right LP

More Info

FUEL CENTER RIGHT SWITCH

fuel_center_right_on_switch


ProSim System:
Fuel

ProSim Group: Switch

ProSim Config Names:
Fuel Center Right Off
Fuel Center Right On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

FUEL LEFT AFT LP INDICATOR

fuel_left_aft_lp_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Fuel Left Aft LP

More Info

FUEL LEFT AFT SWITCH

fuel_left_aft_on_switch


ProSim System:
Fuel

ProSim Group: Switch

ProSim Config Names:
Fuel Left Aft Off
Fuel Left Aft On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

FUEL LEFT FWD LP INDICATOR

fuel_left_fwd_lp_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Fuel Left Fwd LP

More Info

FUEL LEFT FWD SWITCH

fuel_left_fwd_on_switch


ProSim System:
Fuel

ProSim Group: Switch

ProSim Config Names:
Fuel Left Fwd Off
Fuel Left Fwd On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

FUEL RIGHT FWD SWITCH

fuel_right_fwd_on_switch


ProSim System:
Fuel

ProSim Group: Switch

ProSim Config Names:
Fuel Right Fwd Off
Fuel Right Fwd On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

FUEL RIGHT AFT LP INDICATOR

fuel_right_aft_lp_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Fuel Right Aft LP

More Info

FUEL RIGHT AFT SWITCH

fuel_right_aft_on_switch


ProSim System:
Fuel

ProSim Group: Switch

ProSim Config Names:
Fuel Right Aft Off
Fuel Right Aft On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

FUEL RIGHT FWD LP INDICATOR

fuel_right_fwd_lp_indicator


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
Fuel Right Fwd LP

More Info

FUEL TEMPERATURE GAUGE

fuel_temperature_gauge


ProSim System:
Fuel

ProSim Group: Gauge

ProSim Config Names:
Fuel Temperature

More Info

FWD CAB SELECTOR

fwd_cab_selector_analog


ProSim System:
Pneumatic

ProSim Group: Analog

ProSim Config Names:
FWD CAB selector

Hardware:
10K Potentiometer

More Info

GALLEY SWITCH


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Galley Off
Galley On

Hardware:
Honeywell 1TL12
2-POS ON-OFF

More Info

GEN OFF BUS 1 INDICATOR


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
GEN BUS OFF 1

More Info

GEN OFF BUS 2 INDICATOR

GEN BUS OFF 2 Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
GEN BUS OFF 2

More Info

GEN 1 SWITCH


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
GEN 1 Off*
GEN 1 Center
GEN 1 On*

*=Momentary

Hardware:Honeywell 1TL1-7E
3-POS (ON)-OFF-(ON)
Center-Locking
Spring-loaded to Center position

More Info

GEN 2 SWITCH

GEN_2_Center


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
GEN 2 Off*
GEN 2 Center
GEN 2 On*

*=Momentary

Hardware:
Honeywell 1TL1-7E
3-POS (ON)-OFF-(ON)
Center-Locking
Spring-loaded to Center position

More Info

GROUND CALL SWITCH

ground_call_off_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Ground call Off
Ground call Pushed

Hardware:
Momentary push-button, (ON)-OFF

More Info

GROUND POWER AVAILABLE INDICATOR

Grd Pwr Available Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Grd Pwr available

More Info

GROUND POWER SWITCH


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Ground Power Off*
Ground Power Center
Ground Power On*

*=Momentary

Hardware:
Honeywell 1TL1-7E
3-POS (ON)-OFF-(ON)
Center-Locking
Spring-loaded to Center

More Info

HYD ELEC1 LP INDICATOR

hyd_elec_1_lp_indicator

ProSim System: Hydraulic

ProSim Group: Indicator

ProSim Config Names:
Hyd ELEC1 LP

More Info

HYD ELEC2 LP INDICATOR

hyd_elec_2_lp_indicator

ProSim System: Hydraulic

ProSim Group: Indicator

ProSim Config Names:
Hyd ELEC2 LP

More Info

HYD ELEC1 OVHT INDICATOR

hyd_elec_1_ovht_indicator

ProSim System: Hydraulic

ProSim Group: Indicator

ProSim Config Names:
Hyd ELEC1 OVHT

More Info

HYD ELEC2 OVHT INDICATOR

hyd_elec_2_ovht_indicator


ProSim System:
Hydraulic

ProSim Group: Indicator

ProSim Config Names:
Hyd ELEC2 OVHT

More Info

HYD ELEC1 SWITCH

hyd_elec1_on_switch


ProSim System:
Hydraulic

ProSim Group: Switch

ProSim Config Names:
Hyd ELEC1 Off
Hyd ELEC1 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

HYD ELEC2 SWITCH

hyd_elec2_on_switch


ProSim System:
Hydraulic

ProSim Group: Switch

ProSim Config Names:
Hyd ELEC2 Off
Hyd ELEC2 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

HYD ENG1 LP INDICATOR

hyd_eng1_lp_indicator


ProSim System:
Hydraulic

ProSim Group: Indicator

ProSim Config Names:
Hyd ENG1 LP

More Info

HYD ENG2 LP INDICATOR

hyd_eng2_lp_indicator


ProSim System:
Hydraulic

ProSim Group: Indicator

ProSim Config Names:
Hyd ENG2 LP

More Info

HYD ENG1 SWITCH

hyd_eng1_on_switch


ProSim System:
Hydraulic

ProSim Group: Switch

ProSim Config Names:
Hyd ENG1 Off
Hyd ENG1 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

HYD ENG2 SWITCH

hyd_eng2_on_switch


ProSim System:
Hydraulic

ProSim Group: Switch

ProSim Config Names:
Hyd ENG2 Off
Hyd ENG2 On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

HYD STANDBY LOW PRESSURE INDICATOR

hyd_standby_low_pressure_indicator

ProSim System:
Hydraulic

ProSim Group:
Indicator

ProSim Config Names:
Hyd standby low pressure

Hardware:
N/A

Notes:
None

More Info

HYD STANDBY LOW QUANTITY INDICATOR

hyd_standby_low_quantity_indicator

ProSim System:
Hydraulic

ProSim Group:
Indicator

ProSim Config Names:
Hyd standby low quantity

Hardware:
N/A

Notes:
None

IGNITION SELECT SWITCH

Ignition_select_Both


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Ignition select Both
Ignition select Left
Ignition select Right

Hardware:
Honeywell 1TL1-1
3-POS ON-OFF-ON

More Info

IRS SWITCH

irs_normal_switch


ProSim System:
Navigation

ProSim Group: Switch

ProSim Config Names:
IRS Normal
IRS Both on L
IRS Both on R

Hardware:
Honeywell 1TL1-1A
3-POS ON-OFF-ON
Locking in all three positions

More Info

LAND ALT DISPLAY

land_alt_display


ProSim System:
Pneumatic

ProSim Group: TBD

ProSim Config Names:
TBD

More Info

LAND ALT ENCODER

land_alt_encoder


ProSim System:
Pneumatic

ProSim Group: Encoder

ProSim Config Names:
Land alt in encoder

NOTE: other related inputs include:
Land alt in encoder pulse down Off (SWITCH)
Land alt in encoder pulse down On (SWITCH)
Land alt (NUMERICAL)
Land alt in (ANALOG)

Hardware:
Continuous rotary encoder switch

More Info

LAVATORY SMOKE INDICATOR

lavatory_smoke_indicator


ProSim System:
Fire

ProSim Group: Indicator

ProSim Config Names:
Lavatory smoke

More Info

LIGHT MAIN RETRACT SWITCHES

light_main_retract_switches


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:

For 2-Position Variation:
Light Main Retract L On
Light Main Retract L Off
Light Main Retract R On
Light Main Retract R Off

For 3-Position Variation:
Light Main Retract L 3 POS Retracted
Light Main Retract L 3 POS Extended
Light Main Retract L 3 POS On
Light Main Retract R 3 POS Retracted
Light Main Retract R 3 POS Extended
Light Main Retract R 3 POS On

Hardware:
2-POS ON-OFF, Honeywell 1TL133-2
3-POS ON-OFF-ON, Honeywell 1TL133-1

More Info

LIGHT MAIN FIXED SWITCHES

light_main_fixed_switches


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:

Light Main Fixed L On
Light Main Fixed L Off
Light Main Fixed R On
Light Main Fixed R Off

Hardware:
Honeywell 1TL133-2
2-POS ON-OFF

More Info

LIGHTS ANTI COLLISION SWITCH

lights_anti_collision_on_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:
Lights Anti collision Off
Lights Anti collision On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

LIGHTS LOGO SWITCH

lights_logo_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:
Lights Logo Off
Lights Logo On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

LIGHTS POSITION SWITCH

lights_position_on_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:
Lights Position Off
Lights Position On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

NOTE: This is designed for the separate Strobe and Position switches.  If your strobe light switch is a combined 3-position "Position Strobe & Steady"switch, use the Strobe switch config item instead and assign the 3 positions to it.

More Info

LIGHTS RUNWAY TURNOFF SWITCHES

lights_runway_turnoff_switches


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:

Lights Runway turnoff L On
Lights Runway turnoff L Off
Lights Runway turnoff R On
Lights Runway turnoff R Off

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

LIGHTS STROBE SWITCH

lights_strobe_on_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:
2-POS:
Lights Strobe Off
Lights Strobe On

OR

3-POS:
Lights Strobe & Steady Strobe & Steady
Lights Strobe & Steady Off
Lights Strobe & Steady Steady

Hardware:
For 2-POS: Honeywell 1TL1-2 ON-OFF
For 3-POS: Honeywell 1TL1-1 ON-OFF-ON

More Info

LIGHTS TAXI SWITCH

lights_taxi_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:

Lights Taxi On
Lights Taxi Off

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

LIGHTS WHEEL WELL SWITCH

lights_wheel_well_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:
Lights Wheel well Off
Lights Wheel well On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

LIGHTS WING SWITCH

lights_wing_on_switch


ProSim System:
Lighting

ProSim Group: Switch

ProSim Config Names:
Lights Wing Off
Lights Wing On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

MACH TRIM FAIL INDICATOR

mach_trim_fail_indicator

ProSim System: Misc

ProSim Group: Indicator

ProSim Config Names:
Mach Trim Fail

Hardware:

Notes:

More Info

NO SMOKING SWITCH

no_smoking_off_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
No Smoking Off
No Smoking Auto
No Smoking On

Hardware:
Honeywell 1TL1-1
3-POS ON-OFF-ON

More Info

OFF SCHED DESCENT INDICATOR

off_sched_descent_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Off sched descent

More Info

OUTFLOW VALVE POSITION GAUGE

outflow_valve_position_gauge


ProSim System:
Pneumatic

ProSim Group: Gauge

ProSim Config Names:
Outflow valve position

More Info

OUTFLOW VALVE SWITCH

outflow_valve_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Outflow valve Off
Outflow valve Open
Outflow valve Close

Hardware:
Honeywell 1TL1-7
3-POS (ON)-OFF-(ON)

More Info

OVHT TEST

ovht_test_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
OVHT test Off
OVHT test On

Hardware:
Momentary push button (ON)-OFF

More Info

PACK 1 SWITCH

pack_1_auto_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Pack 1 Auto
Pack 1 High
Pack 1 Off

Hardware:
Honeywell 1TL1-1A
3-POS ON-OFF-ON
Locked in all 3 positions

More Info

PACK 2 SWITCH

pack_2_auto_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Pack 1 Auto
Pack 1 High
Pack 1 Off

Hardware:
Honeywell 1TL1-1A
3-POS ON-OFF-ON
Locked in all 3 positions

More Info

PACK L INDICATOR

pack_l_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Pack L

More Info

PACK R INDICATOR

pack_r_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Pack R

More Info

PNEUMATIC ISOLATION SWITCH

pneumatic_isolation_switch_auto_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Pneumatic Isolation switch Open
Pneumatic Isolation switch Auto
Pneumatic Isolation switch Close

Hardware:
Honeywell 1TL1-1A
3-POS ON-OFF-ON
Locked in all 3 positions

More Info

PRESSURE DIFFERENTIAL GAUGE

pressure_differential_gauge


ProSim System:
Pneumatic

ProSim Group: Gauge

ProSim Config Names:
Pressure differential

More Info

PRESSURE GAUGE

pressure_gauge


ProSim System:
Pneumatic

ProSim Group: Gauge

ProSim Config Names:
Pressure Left
Pressure Right

More Info

PRESSURIZATION ALTN INDICATOR

pressurization_altn_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Pressurization Altn

More Info

PRESSURIZATION AUTO FAIL INDICATOR

pressurization_auto_fail_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Pressurization auto fail

More Info

PRESSURIZATION MANUAL INDICATOR

pressurization_manual_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Pressurization manual

More Info

PRESSURIZATION SWITCH

pressurization_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Pressurization Auto
Pressurization Altn
Pressurization Man

Hardware:
8-POS rotary switch limited to 3 positions

More Info

PROBE HEAT A SWITCH

probe_heat_a_on_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Probe heat A OFF
Probe heat A ON

Hardware:
Honeywell 1TL1-w
2-POS ON-OFF

More Info

PROBE HEAT B SWITCH

probe_heat_b_on_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Probe heat B OFF
Probe heat B ON

Hardware:
Honeywell 1TL1-w
2-POS ON-OFF

More Info

RAM DOOR FULL OPEN L INDICATOR

ram_door_full_open_l_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Ram door full open L
Ram door full open L bright (GATE)

More Info

RAM DOOR FULL OPEN R INDICATOR

ram_door_full_open_l_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Ram door full open R
Ram door full open R bright (GATE)

More Info

RECIRC FAN L SWITCH

recirc_fan_l_auto_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Recirc Fan L Auto
Recirc Fan L Off
Recirc Fan L running (GATE)

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

RECIRC FAN R SWITCH

recirc_fan_r_auto_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Recirc Fan R Auto
Recirc Fan R Off
Recirc Fan R running (GATE)

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

SEATBELT SWITCH

seatbelt_off_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Seatbelt Off
Seatbelt Auto
Seatbelt On

Hardware:
Honeywell 1TL1-1
3-POS ON-OFF-ON

More Info

SOURCE OFF 1 INDICATOR

Source Off 1 Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Source OFF 1

More Info

SOURCE OFF 2 INDICATOR

Source Off 2 Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Source OFF 2

More Info

SPAR VALVE CLOSED L INDICATOR

spar_valve_closed_l_indicator_bright


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
SPAR Valve Closed L
SPAR Valve Closed L bright

This is a dual-brightness indicator

More Info

SPAR VALVE CLOSED R INDICATOR

spar_valve_closed_r_indicator_bright


ProSim System:
Fuel

ProSim Group: Indicator

ProSim Config Names:
SPAR Valve Closed R
SPAR Valve Closed R bright

This is a dual-brightness indicator

More Info

SPEED TRIM FAIL INDICATOR

speed_trim_fail_indicator

ProSim System: Flight Controls

ProSim Group: Indicator

ProSim Config Names:
Speed Trim Fail

Hardware:

Notes:

More Info

SPOILER A SWITCH

spoiler_A_on_switch

ProSim System: Hydraulic

ProSim Group: Switch

ProSim Config Names:
Spoiler A Off
Spoiler A On

Hardware:
Honeywell 1TL1-2


Notes:
2 Position, ON-OFF

SPOILER B SWITCH

spoiler_B_on_switch

ProSim System: Hydraulic

ProSim Group: Switch

ProSim Config Names:
Spoiler B Off
Spoiler B On

Hardware:
Honeywell 1TL1-2


Notes:
2-Position, ON-OFF

STANDBY POWER OFF INDICATOR

Standby Pwr Off Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Standby pwr off

More Info

STANDBY POWER SWITCH


ProSim System:
Electric

ProSim Group: Switch

ProSim Config Names:
Standby power switch Off
Standby power switch Bat
Standby power switch Auto

Hardware:
Honeywell 1TL1-1
3-POS ON-OFF-ON
Defaults to Auto position when Guarded

More Info

START 1 SWITCH

start_1_off_switch


ProSim System:
Penumatic

ProSim Group: Switch

ProSim Config Names:
Start 1 Off
Start 1 GRD
Start 1 CONT
Start 1 FLT

Hardware:
Cole P/N 6600-2266 Magnetic Switch
Push in to rotate to GRD position; magnetic hold on GRD position

More Info

START 2 SWITCH

start_2_off_switch


ProSim System:
Penumatic

ProSim Group: Switch

ProSim Config Names:
Start 2 Off
Start 2 GRD
Start 2 CONT
Start 2 FLT

Hardware:
Cole P/N 6600-2266 Magnetic Switch
Push in to rotate to GRD position; magnetic hold on GRD position

More Info

STDBY RUD ON INDICATOR

stby_rud_on_indicator

ProSim System:
Hydraulic

ProSim Group:
Indicator

ProSim Config Names:
Stdby Rud On

Hardware:
N/A

Notes:
None

More Info

TAT TEST SWITCH

tat_test_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
TAT test Off
TAT test Pushed

Hardware:
Momentary push button, (ON)-OFF

More Info

TEMP PROBE HEAT INDICATOR

tempprobe_heat_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Temp Probe Heat

More Info

TR UNIT INDICATOR

TR UNIT Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
TR UNIT

More Info

TRANSFER BUS OFF 1 INDICATOR

Transfer Bus OFF 1 Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Transfer bus OFF 1

More Info

TRANSFER BUS OFF 2 INDICATOR

Transfer Bus OFF 2 Indicator


ProSim System:
Electric

ProSim Group: Indicator

ProSim Config Names:
Transfer bus OFF 2

More Info

TRIM AIR SWITCH

trim_air_switch_on


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Trim air Off
Trim air On

Hardware:
Honeywell 1TL1-2D
2-POS ON-OFF
Locked in both positions

More Info

TRIP RESET SWITCH

trip_reset_switch


ProSim System:
Pneumatic

ProSim Group: Switch

ProSim Config Names:
Trip reset Off
Trip reset On

Hardware:
Momentary push button switch, (ON)-OFF

ProSim Config Names:
OVHT test Off
OVHT test On

More Info

VHF NAV SWITCH

vhf_normal_switch


ProSim System:
Navigation

ProSim Group: Switch

ProSim Config Names:
VHF NAV Normal
VHF NAV Both on 1
VHF NAV Both on 2

Hardware:
Honeywell 1TL1-1A
3-POS ON-OFF-ON
Locking in all three positions

More Info

WAI L VALVE OPEN INDICATOR

wai_l_valve_open_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
WAI L Valve Open
WAI L Valve Open bright (GATE)*

*This is a dual-brightness indicator. The bright state is a gate. Bright indicates the valve is in transit and dim indicates an full open state.

More Info

WAI R VALVE OPEN INDICATOR

wai_r_valve_open_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
WAI R Valve Open
WAI R Valve Open bright (GATE)*

*This is a dual-brightness indicator. The bright state is a gate. Bright indicates the valve is in transit and dim indicates an full open state.

More Info

WINDOW HEAT FWD L OVERHEAT INDICATOR

window_heat_fwd_l_overheat_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat FWD L overheat

More Info

WINDOW HEAT SIDE L OVERHEAT INDICATOR

window_heat_side_l_overheat_indicator

ProSim System: Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat Side L overheat

More Info

WINDOW HEAT SIDE R OVERHEAT INDICATOR

window_heat_side_r_overheat_indicator

ProSim System: Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat Side R overheat

More Info

WINDOW HEAT FWD R OVERHEAT INDICATOR

window_heat_fwd_r_overheat_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat FWD R overheat

More Info

WINDOW HEAT SIDE L INDICATOR

window_heat_side_l_on_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat Side L off*
Window heat Side L on

*Not sure why this item is included. The ON item should be all that's needed.

More Info

WINDOW HEAT FWD L INDICATOR

window_heat_fwd_l_on_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat FWD L off*
Window heat FWD L on

*Not sure why this item is included. The ON item should be all that's needed.

More Info

WINDOW HEAT FWD R INDICATOR

window_heat_fwd_r_on_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat FWD R off*
Window heat FWD R on

*Not sure why this item is included. The ON item should be all that's needed.

More Info

WINDOW HEAT SIDE R INDICATOR

window_heat_side_r_on_indicator


ProSim System:
Heating

ProSim Group: Indicator

ProSim Config Names:
Window heat Side R off*
Window heat Side R on

*Not sure why this item is included. The ON item should be all that's needed.

More Info

WINDOW HEAT SIDE L SWITCH

window_heat_side_l_on_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Window heat Side L Off
Window heat Side L On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

WINDOW HEAT FWD L SWITCH

window_heat_fwd_l_on_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Window heat FWD L Off
Window heat FWD L On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

WINDOW HEAT TEST SWITCH

window_heat_test_center_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Window heat test OVHT*
Window heat test Center
Window heat test PWR TEST*

*=Momentary position (Spring-loaded to Center)

Hardware:
Honeywell 1TL1-7
3-POS (ON)-OFF-(ON)

More Info

WINDOW HEAT FWD R SWITCH

window_heat_fwd_r_on_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Window heat FWD R Off
Window heat FWD R On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

WINDOW HEAT SIDE R SWITCH

window_heat_side_r_on_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Window heat Side R Off
Window heat Side R On

Hardware:
Honeywell 1TL1-2
2-POS ON-OFF

More Info

WING ANTI-ICE SWITCH

wing_anti_ice_off_switch


ProSim System:
Heating

ProSim Group: Switch

ProSim Config Names:
Wing Anti-Ice Off
Wing Anti-Ice On
Wing Anti-Ice hold actuator (GATE)*
Wing Anti-Ice off actuator (GATE)*

*This is a magnetic locking switch. When the magnet is powered by activating the gate, the magnet holds the switch in the ON position.

Hardware:
Microswitch 25ET61-S, Magnetic 28V
2-POS ON-OFF
(alternate Honeywell 1TL1-2 non-magnetic)

More Info

WING-BODY OVERHEAT 1 INDICATOR

wing-body_overheat_1_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Wing-body overheat 1

More Info

WING-BODY OVERHEAT 2 INDICATOR

wing-body_overheat_2_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Wing-body overheat 2

More Info

WIPER LEFT SWITCH

wiper_left_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Wiper left Park
Wiper left Int
Wiper left Low
Wiper left High

Hardware:
8-Position Rotary Switch (locked to 4 positions)

More Info

WIPER RIGHT SWITCH

wiper_right_park_switch


ProSim System:
Misc

ProSim Group: Switch

ProSim Config Names:
Wiper right Park
Wiper right Int
Wiper right Low
Wiper right High

Hardware:
8-Position Rotary Switch (locked to 4)

More Info

YAW DAMPER INDICATOR

yaw_damper_indicator

ProSim System: Misc

ProSim Group: Indicator

ProSim Config Names:
Yaw damper

Hardware:

Notes:

More Info

YAW DAMPER SWITCH

yaw_damper_off_switch

ProSim System: Misc

ProSim Group: Switch

ProSim Config Names:
Yaw damper Off
Yaw damper On

Hardware:
25ET61-S


Notes:
Magnetic hold toggle switch. Holds in ON position when 28V DC power applied.

More Info

ZONE TEMP CONT CAB INDICATOR

zone_temp_cont_cab_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Zone temp CONT CAB

More Info

ZONE TEMP FWD CAB INDICATOR

zone_temp_fwd_cab_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Zone temp FWD CAB

More Info

ZONE TEMP AFT CAB INDICATOR

zone_temp_aft_cab_indicator


ProSim System:
Pneumatic

ProSim Group: Indicator

ProSim Config Names:
Zone temp AFT CAB

More Info

VOICE RECORDER SWITCH

ProSim System: Misc

ProSim Group: Switch

ProSim Config Names:
Voice recorder Auto
Voice recorder On

Hardware:2-POS ON-OFF

VOICE RECORDER ERASE SWITCH

ProSim System: Misc

ProSim Group: Switch

ProSim Config Names:
Voice recorder erase Off
Voice recorder erase Pushed

Hardware: Momentary Push-button Switch

VOICE RECORDER TEST SWITCH

ProSim System: Misc

ProSim Group: Switch

ProSim Config Names:
Voice recorder test Off
Voice recorder test Pushed

Hardware: Momentary Push-Button Switch

VOICE RECORDER STATUS INDICATOR

ProSim System: Misc

ProSim Group: Indicator

ProSim Config Names:
Voice recorder status
