AFT-OH

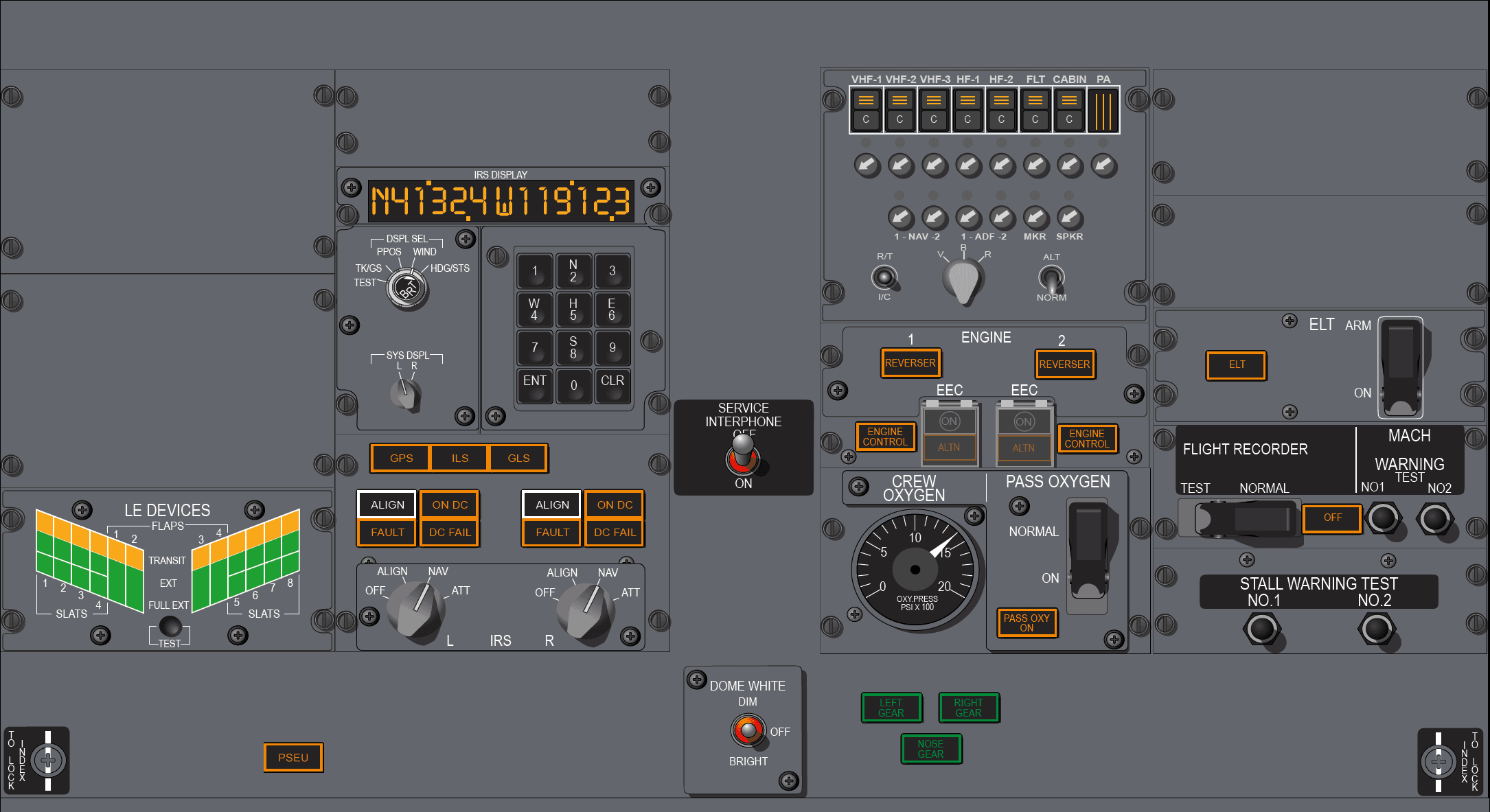

Click an item in the diagram at right to view its basic ProSim Config properties.
Click the More Info button that appears in this panel to visit the Combined Config reference table where you'll find more detailed information on the item, if available.
ELT SWITCH
ProSim System: Misc
ProSim Group: Switch
ProSim Config Names:
ELT Arm
ELT On
Hardware:
2-POS ON-OFF
IRS DISP SEL SWITCH
ProSim System: Navigation
ProSim Group: Switch
ProSim Config Names:
IRS Disp Sel TK/GS
IRS Disp Sel Test
IRS Disp Sel PPOS
IRS Disp Sel Wind
IRS Disp Sel HDG/STS
Hardware:
12-POS Rotary Switch, 30 degree detents
IRS SYS DSPL SWITCH
ProSim System: Navigation
ProSim Group: Switch
ProSim Config Names:
IRS SYS DSPL Left
IRS SYS DSPL Right
Hardware:
8-POS rotary switch, limited to 2 positions
LE DEVICES INDICATORS
ProSim System: Misc
ProSim Group: Indicator
ProSim Config Names:
Flaps extended 1
Flaps extended 2
Flaps extended 3
Flaps extended 4
Flaps transit 1
Flaps transit 2
Flaps transit 3
Flaps transit 4
Slats extended 1
Slats extended 2
Slats extended 3
Slats extended 4
Slats extended 5
Slats extended 6
Slats extended 7
Slats extended 8
Slats fullExtended 1
Slats fullExtended 2
Slats fullExtended 3
Slats fullExtended 4
Slats fullExtended 5
Slats fullExtended 6
Slats fullExtended 7
Slats fullExtended 8
Slats transit 1
Slats transit 2
Slats transit 3
Slats transit 4
Slats transit 5
Slats transit 6
Slats transit 7
Slats transit 8
IRS KEYPAD SWITCHES
ProSim System: Navigation
ProSim Group: Switch
ProSim Config Names:
IRS Keypad 0 Off
IRS Keypad 0 Pushed
IRS Keypad 1 Off
IRS Keypad 1 Pushed
IRS Keypad 2 Off
IRS Keypad 2 Pushed
IRS Keypad 3 Off
IRS Keypad 3 Pushed
IRS Keypad 4 Off
IRS Keypad 4 Pushed
IRS Keypad 5 Off
IRS Keypad 5 Pushed
IRS Keypad 6 Off
IRS Keypad 6 Pushed
IRS Keypad 7 Off
IRS Keypad 7 Pushed
IRS Keypad 8 Off
IRS Keypad 8 Pushed
IRS Keypad 9 Off
IRS Keypad 9 Pushed
IRS Keypad CLR Off
IRS Keypad CLR Pushed
IRS Keypad ENT Off
IRS Keypad ENT Pushed
LE DEVICES TEST SWITCH
ProSim System: Misc
ProSim Group: Switch
ProSim Config Names:
LE Devices test Off
LE Devices test Pushed
Hardware:
Momentary push button, (ON)-OFF
IRS LEFT ALIGN INDICATOR
IRS RIGHT ALIGN INDICATOR
IRS LEFT ON DC INDICATOR
IRS RIGHT ON DC INDICATOR
IRS LEFT FAULT INDICATOR
IRS RIGHT FAULT INDICATOR
IRS LEFT DC FAIL INDICATOR
IRS RIGHT DC FAIL INDICATOR
IRS LEFT SWITCH
ProSim System: Navigation
ProSim Group: Switch
ProSim Config Names:
IRS left Nav
IRS left Off
IRS left Align
IRS left Att
Hardware:
IRS RIGHT SWITCH
ProSim System: Navigation
ProSim Group: Switch
ProSim Config Names:
IRS right Nav
IRS right Off
IRS right Align
IRS right Att
Hardware:
PSEU INDICATOR
DOME LIGHT SWITCH
ProSim System: Lighting
ProSim Group: Switch
ProSim Config Names:
Dome light Dim
Dome light Off
Dome light Bright
Domelight bright (GATE)
Domelight dim (GATE)
Domelight master (GATE)
Hardware:
3-POS toggle switch, ON-OFF-ON
REVERSER LEFT INDICATOR
REVERSER RIGHT INDICATOR
ENGINE CONTROL LEFT INDICATOR
ENGINE CONTROL RIGHT INDICATOR
EEC LEFT
ProSim System: Engine
ProSim Group: Indicator & Switch
ProSim Config Names:
EEC left Off (SWITCH)
EEC left Pushed (SWITCH)
EEC left latch Off (SWITCH)
EEC left latch On (SWITCH)
EEC Altn left (INDICATOR)
EEC On left (INDICATOR)
Hardware:
This is a specialized switch/indicator combination. The indicators and switch are controlled via multiple inputs on the back-side of the switch housing. FlightDeck Solutions makes the one I have.
EEC RIGHT
ProSim System: Engine
ProSim Group: Indicator & Switch
ProSim Config Names:
EEC right Off (SWITCH)
EEC right Pushed (SWITCH)
EEC right latch Off (SWITCH)
EEC right latch On (SWITCH)
EEC Altn right (INDICATOR)
EEC On right (INDICATOR)
Hardware:
This is a specialized switch/indicator combination. The indicators and switch are controlled via multiple inputs on the back-side of the switch housing. FlightDeck Solutions makes the one I have.
OXYGEN PRESSURE GAUGE
GEAR LEFT AFT OVH INDICATOR
ProSim System: Landing Gear
ProSim Group: Indicator
ProSim Config Names:
Gear left aft ovh
GEAR RIGHT AFT OVH INDICATOR
ProSim System: Landing Gear
ProSim Group: Indicator
ProSim Config Names:
Gear right aft ovh
GEAR NOSE AFT OVH INDICATOR
ProSim System: Landing Gear
ProSim Group: Indicator
ProSim Config Names:
Gear nose aft ovh
PASS OXY ON INDICATOR
PASS OXYGEN SWITCH
ProSim System: Pneumatic
ProSim Group: Switch
ProSim Config Names:
Pass oxygen Normal
Pass oxygen On
Hardware:
2-POS ON-OFF guarded toggle switch
Switch is in the NORMAL position when guarded.
FLIGHT RECORDER SWITCH
ProSim System: Misc
ProSim Group: Switch
ProSim Config Names:
Flight recorder Normal
Flight recorder Test
Hardware:
2-POS ON-OFF guarded toggle switch
Switch is in the Normal position when guard is closed.
FLIGHT RECORDER OFF INDICATOR
MACH AIRSPEED WARNING TEST NO1 SWITCH
ProSim System: Misc
ProSim Group: Switch
ProSim Config Names:
Mach Airspeed warning test no1 Off
Mach Airspeed warning test no1 Pushed
Hardware:
Momentary push button, (ON)-OFF
MACH AIRSPEED WARNING TEST NO2 SWITCH
ProSim System: Misc
ProSim Group: Switch
ProSim Config Names:
Mach Airspeed warning test no2 Off
Mach Airspeed warning test no2 Pushed
Hardware:
Momentary push button, (ON)-OFF
STALL TEST 1 SWITCH
ProSim System: Misc
ProSim Group: Switch
ProSim Config Names:
Stall test 1 Off
Stall test 1 Pushed
Hardware:
Momentary push button, (ON)-OFF
STALL TEST 2 SWITCH
ProSim System: Misc
ProSim Group: Switch
ProSim Config Names:
Stall test 2 Off
Stall test 2 Pushed
Hardware:
Momentary push button, (ON)-OFF
IRS DISPLAY LCD
ProSim System: Navigation
ProSim Group: LCD
ProSim Config Names:
IRS Display
IRS Display left char state (NUMERICAL)
IRS Display left mode (NUMERICAL)
IRS Display left number (NUMERICAL)
IRS Display right char state (NUMERICAL)
IRS Display right mode (NUMERICAL)
IRS Display right number (NUMERICAL)
ILS INDICATOR
ProSim System: Misc
ProSim Group: Indicator
ProSim Config Names:
ILS
GLS INDICATOR
ProSim System: Misc
ProSim Group: Indicator
ProSim Config Names:
GLS
